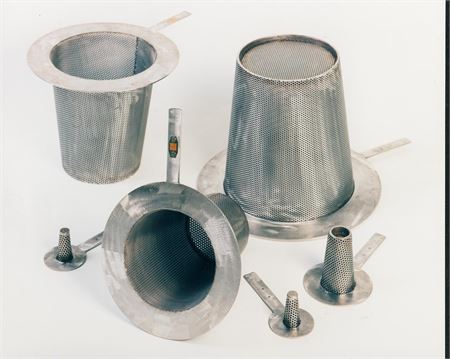

Conical Strainers

Conical, also known as temporary, strainers are a very low cost way of protecting process equipment against damage caused by contamination that is often present during the start-up and commissioning of new plant.

Conical strainers are designed for temporary use, to be thrown away after initial cleaning of the system.

The downside to a Conical Strainer is they are sandwiched between two flanges, therefore require an accessible section of pipe to remove them. e.g removable spool pieces.

Conical strainers can be manufactured in a range of different configurations to suit your specific requirements, including size, length, filtration level, etc.

Conical

Sizes: 1/2" (15mm) to 30"+ (750mm+)

Various Stainless Steel, Monel, Duplex, Carbon

Maximum pressure rating class 2500lb+ (172 Barg+)

High Pressure

Sizes: 1/2" (15mm) to 30"+ (750mm+)

Various Stainless Steel, Monel, Duplex, Carbon

Maximum pressure rating class 2500lb+ (172 Barg+)

Witches Hat

Sizes: 1/2" (15mm) to 30"+ (750mm+)

Various Stainless Steel, Monel, Duplex, Carbon

Maximum pressure rating class 2500lb+ (172 Barg+)

Wedge Wire

Sizes: 1/2" (15mm) to 30"+ (750mm+)

Various Stainless Steel, Monel, Duplex, Carbon

Maximum pressure rating class 2500lb+ (172 Barg+)
