Seepex

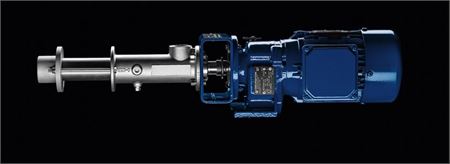

D - Metering Pump

Seepex metering pumps achieve a metering accuracy of ±1%. They’re used wherever low to highly viscous media, media containing solids and chemically corrosive media are processed, and all with low pulsation and to the exact drop.

Contact us for further information or to discuss your pump application.

D - Range
MD Range For Low to highly viscous media, and shear sensitive, or chemically aggressive media Conveying Capacity: 0.2 litres/hr - 1000 litres/hr Pressure: Up to 24 Bar Short, compact design with direct flange mounted drive (block type)	MDC Range For highly viscous products with low flowability Conveying Capacity: 0.5 litres/hr - 500 litres/hr Pressure: Up to 24 Bar Highest hygienic standards and corrosion wear resistance
MDP Range For Low to highly viscous media, and shear sensitive, or chemically aggressive media Conveying Capacity: 1 litres/hr - 500 litres/hr Pressure: Up to 12 Bar Single part, jointless and wear resistant rotating unit made of synthetic material	MDTC Range For highly viscous products with low flowability Conveying Capacity: 0.5 litres/hr - 500 litres/hr Pressure: Up to 24 Bar Open hopper pump with cylindrical/conical compression zone + auger feed screw
MDT Range For Low to highly viscous products with low flowability Conveying Capacity: 5 litres/hr - 500 litres/hr Pressure: Up to 24 Bar Open hopper pump with compression zone + auger feed screw	MDF Range For non-viscous to viscous media Conveying Capacity: 0.5 litres/hr - 1000 litres/hr Pressure: Up to 12 Bar Draining pump for open top barrelsor closed barrels with 2" bung holes

D - Range

MD Range

For Low to highly viscous media, and shear sensitive, or chemically aggressive media
Conveying Capacity: 0.2 litres/hr - 1000 litres/hr
Pressure: Up to 24 Bar
Short, compact design with direct flange mounted drive (block type)

MDC Range

For highly viscous products with low flowability
Conveying Capacity: 0.5 litres/hr - 500 litres/hr
Pressure: Up to 24 Bar
Highest hygienic standards and corrosion wear resistance

MDP Range

For Low to highly viscous media, and shear sensitive, or chemically aggressive media
Conveying Capacity: 1 litres/hr - 500 litres/hr
Pressure: Up to 12 Bar
Single part, jointless and wear resistant rotating unit made of synthetic material

MDTC Range

For highly viscous products with low flowability
Conveying Capacity: 0.5 litres/hr - 500 litres/hr
Pressure: Up to 24 Bar
Open hopper pump with cylindrical/conical compression zone + auger feed screw

MDT Range

For Low to highly viscous products with low flowability
Conveying Capacity: 5 litres/hr - 500 litres/hr
Pressure: Up to 24 Bar
Open hopper pump with compression zone + auger feed screw

MDF Range

For non-viscous to viscous media
Conveying Capacity: 0.5 litres/hr - 1000 litres/hr
Pressure: Up to 12 Bar
Draining pump for open top barrelsor closed barrels with 2" bung holes

Key Facts

Conveying Capacity 0.2 Litres/H - 1,000 Litres/H
Pressure: Up to 24 bar

Features + Benefits

Modular system for quick and easy conversion
Low pulsation pumping
High metering accuracy (deviation ±1%)
Easy maintenance due to the plug-in connection
Material combinations available for all conveying products
Multiple drive combinations possible
