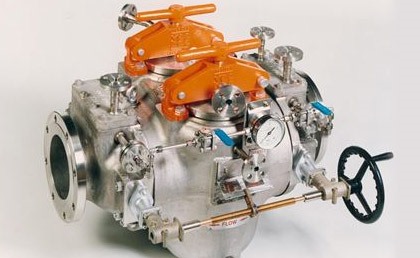

Dual Type Strainers

Dual Type Strainers provide a simple and effective solution to pipeline filtration where the use of either a Y Type or Mono Type strainer is prohibited by the necessity for continuous flow.  We can supply a complete range of Vee Bee Dual Strainers, suitable for most applications.

Swing Gate
  • Sizes: 1/2" (15mm) to 4" (100mm)
  • Flanged Ends ANSI, BS4504 (DIN, PN), BS10
  • Screwed Ends API, BSP, NPT
  • Various cast materials of construction
  • 100% shut-off for gas applications
  • Quick release or bolted covers
  • Maximum pressure ratings ANSI Class 300lb

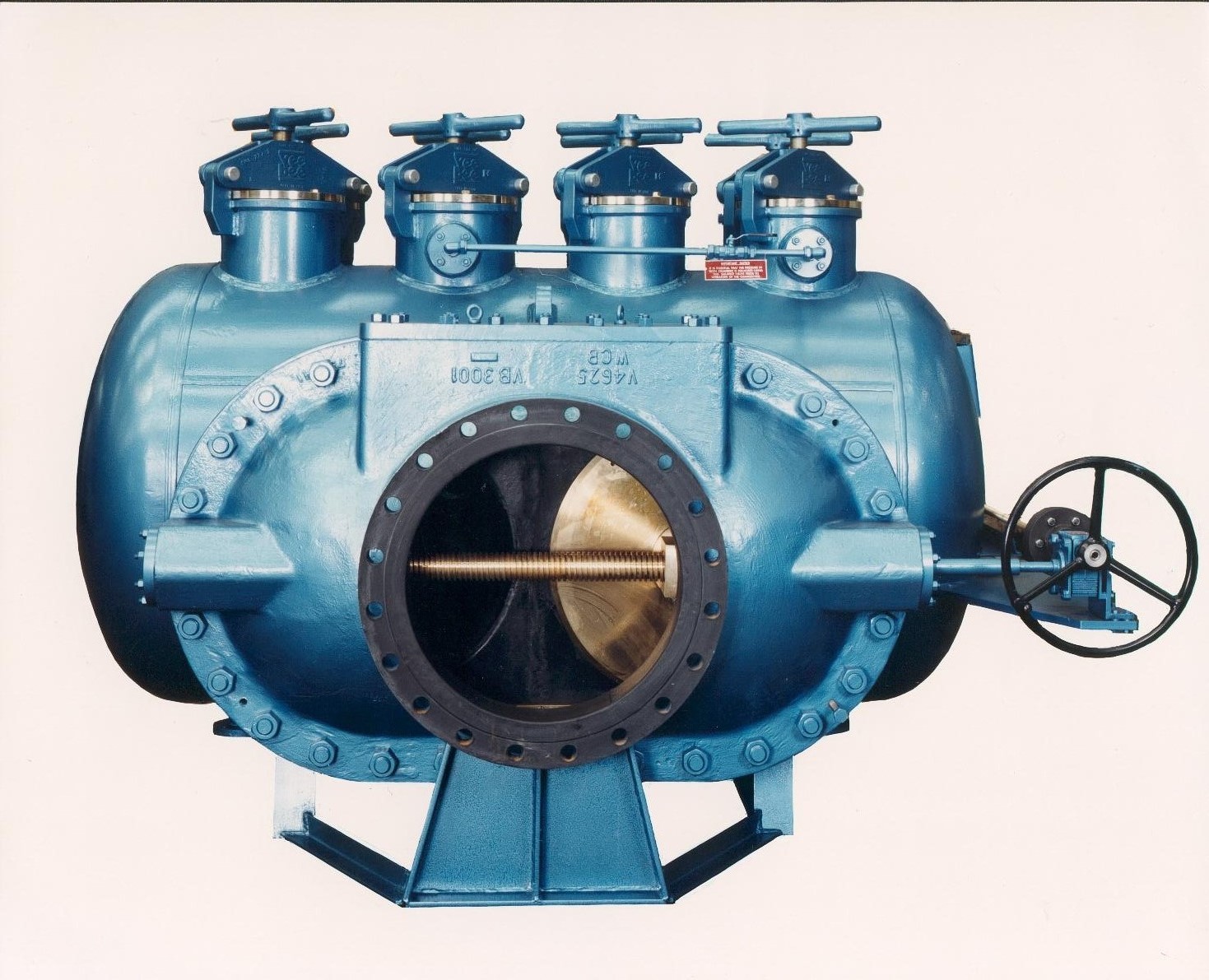

Screw Gate
  • Sizes: 3" (80mm) to 32"+ (800mm+)
  • Flanged Ends ANSI, BS4504 (DIN, PN), BS10
  • Various cast materials of construction
  • 100% shut-off for gas applications
  • Quick release or bolted covers
  • Actuated changeover available
  • Maximum pressure ratings ANSI Class 600lb
  • Handling temperatures in excess of 500F

High Pressure

  • Sizes: 4" (100mm) to 48"+ (1200mm+)
  • Flanged Ends ANSI, BS4504 (DIN, PN), BS10
  • Various fabricated materials of construction
  • 100% shut-off for gas applications
  • Quick release or bolted covers
  • Actuated changeover available
  • Skid bases and framework also available
  • Maximum pressure ratings ANSI Class 1500lb
Fabricated
  • Sizes: 4" (100mm) to 48"+ (1200mm+)
  • Flanged Ends ANSI, BS4504 (DIN, PN), BS10
  • Various fabricated materials of construction
  • 100% shut-off for gas applications
  • Quick release or bolted covers
  • Actuated changeover available
  • Skid bases and framework also available
  • Maximum pressure ratings ANSI Class 300lb

Contact us for further information or to discuss your strainer requirements.
