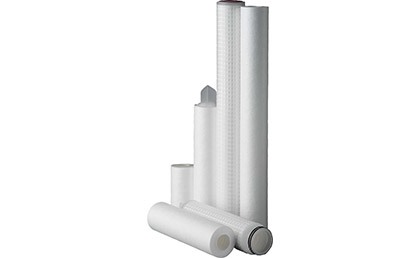

SupaSpun NN - Nylon

SupaSpun NN precision graded density filter elements are a further development of our already well proven absolute rated depth type filter. These high performance cartridges excel in dirt holding capacity and give extremely low clean pressure losses as a result of the strictly controlled manufacturing of the fibre matrix.

SupaSpun NN filter cartridges are produced using an improved manufacturing process resulting in the following features:-

 - Absolute Rated Filter Media
 - Available from 1 to 180µm
 - Nylon 6 media
 - Consistent reliable performance

Unique Construction

 - One piece high strength support core
 - High void volume, resulting in low clean Dp and excellent dirt holding capacity
 - End cap welded direct to the core for extra security and strength
 - Thermally bonded fibre matrix minimises fibre migration
 - One piece construction up to 1524mm (60”)
 - SupaSpun NN Advantage grade featuring moulded end caps and rigid outer support cage
 - Optional glass filled core and end caps for high strength / temperature applications

SupaSpun NN fibres are blown continuously onto a central support core, with fibre diameters controlled to produce different pore sizes throughout the extrusion process.All the layers are inter-linked to offer maximum support while ensuring that the high void volume is maintained, but with increasing fibre density towards the cartridge central core – therefore resulting in true depth filtration.

Elements are available up to 1524mm (60”) in length, either double open ended or with most common end cap fittings.

Contact us for further information or to discuss your filter application.

Features + Benefits

  • Absolute removal ratings for consistent and reliable performance
  • Graded density structure for maximum dirt holding capacity
  • Increased void volume giving high flow rates and low initial pressure losses
  • Wide chemical compatibility using nylon 6 media
  • Range of Absolute ratings from 1.0 to 180µm
  • Thermal bonding process minimises media migration and ensures minimal extractables
  • Identification data embossed on every cartridge
  • Advantage grade featuring moulded end caps and rigid outer support cage
  • Cartridges only need to be flushed with site water for 30minutes before the filters can be brought into full service
